Patching White Album 2 for Proton Part 2: Fixing Subtitles and Switching Codecs

In my previous post, I described debugging a crash in White Album 2 caused by a vendored d3d9.dll that was corrupting the lpVtbl of a COM object during IDirect3DDevice9_Release. My fix at the time was simple: move the DLL out of the game's loading path so DXVK's d3d9.dll would be used directly. The game stopped crashing and I could play through the visual novel on my Steam Deck.

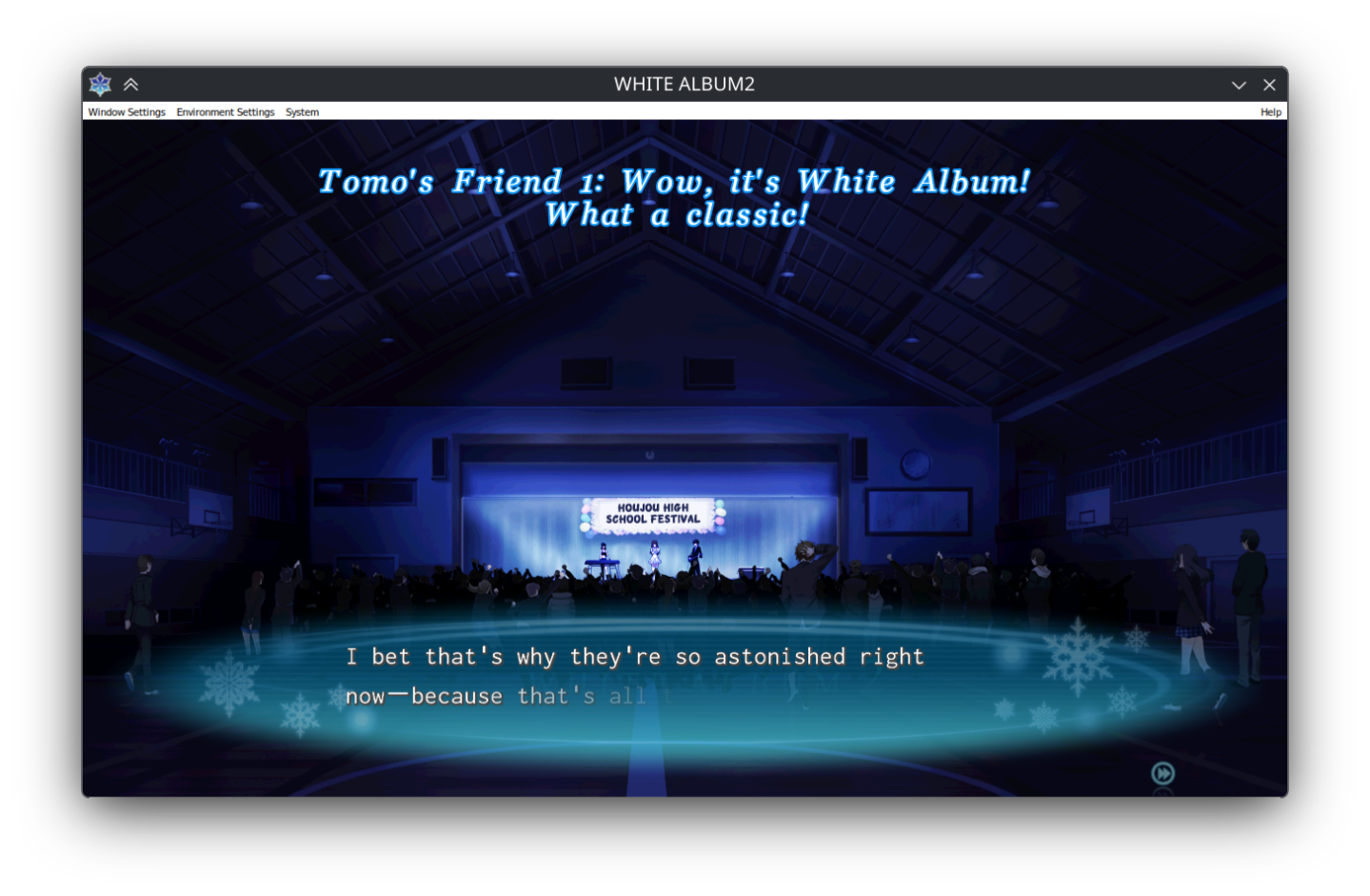

What I did not fully appreciate at the time was what that d3d9.dll actually was. It turns out the DLL is part of the TodokanaiTL subtitle project. The subtitle system works by proxying d3d9.dll, hooking into the game's rendering pipeline to overlay translated subtitles during movie scenes. By removing it, I had fixed the crash but silently broken subtitle rendering. This was reported in an issue on my patch scripts repository. The reporter's workaround was to disable DXVK entirely with PROTON_USE_WINED3D=1 and use a DLL override, which avoided the crash but meant giving up DXVK.

I wanted to do better than that. Rather than choosing between subtitles and DXVK, I decided to look at the subtitle DLL's source code and fix the underlying bugs.

The root cause of the crash from Part 1 was a violation of Microsoft's COM reference counting contract in the subtitle DLL's wrapper classes. The Direct3DWrapper and Direct3DDeviceWrapper classes implement IUnknown::Release by forwarding the call to the wrapped object, but then unconditionally deleting the wrapper instance regardless of what the wrapped object's reference count actually was. Per the COM specification, Release decrements the reference count and the object should only be destroyed when the count reaches zero.

This worked fine with wined3d, likely because the reference count patterns in that code path never exposed the issue. DXVK, however, exposes the issue with COM object lifetimes. When the subtitle DLL freed its wrapper while the underlying DXVK object still had outstanding references, the lpVtbl would get corrupted, leading to the NULL function pointer dereference I traced in Part 1.

The fix was straightforward: only delete the wrapper instance when the original object's reference count reaches zero. I submitted this as a pull request to the TodokanaiTL subtitles project.

While I was in the code, I found a second bug. Utility::getResourcePath returned a pointer to a stack-allocated array. This is undefined behavior since the stack frame is invalidated once the function returns. In practice, the memory would get clobbered by interweaving stack calls, leading to intermittent crashes or incorrect subtitle file paths.

The fix changes the interface so that callers provide their own buffer and manage its lifetime, eliminating the dangling pointer. I submitted this as a separate pull request.

The original version of my patch scripts converted White Album 2's ASF movie assets to H.264 encoded mp4 files. This worked at the time, but H.264 licensing concerns have degraded its support in Proton environments. Valve's codec documentation recommends AV1 for video and Opus for audio.

I updated the gstreamer patch script to encode with libsvtav1 and libopus instead.

  ffmpeg -i "$mv_pak" -c:v libsvtav1 -c:a libopus "${mv_pak}.mp4"

With the subtitle DLL bugs fixed and the codec conversion updated, the patch scripts now provide a complete experience: DXVK for rendering, working subtitles during movie scenes, and AV1 encoded video assets that Proton's gstreamer stack handles without issue. The updated patch script distributes the corrected subtitle DLL so users do not need to build it from source.

  ❯ ./wa2-proton-dxvk-patch.sh <path-to-wa2-install>

  ❯ ./wa2-proton-gstreamer-patch.sh <path-to-wa2-install>

No PROTON_USE_WINED3D=1 needed. No DLL overrides. Just patch and play.

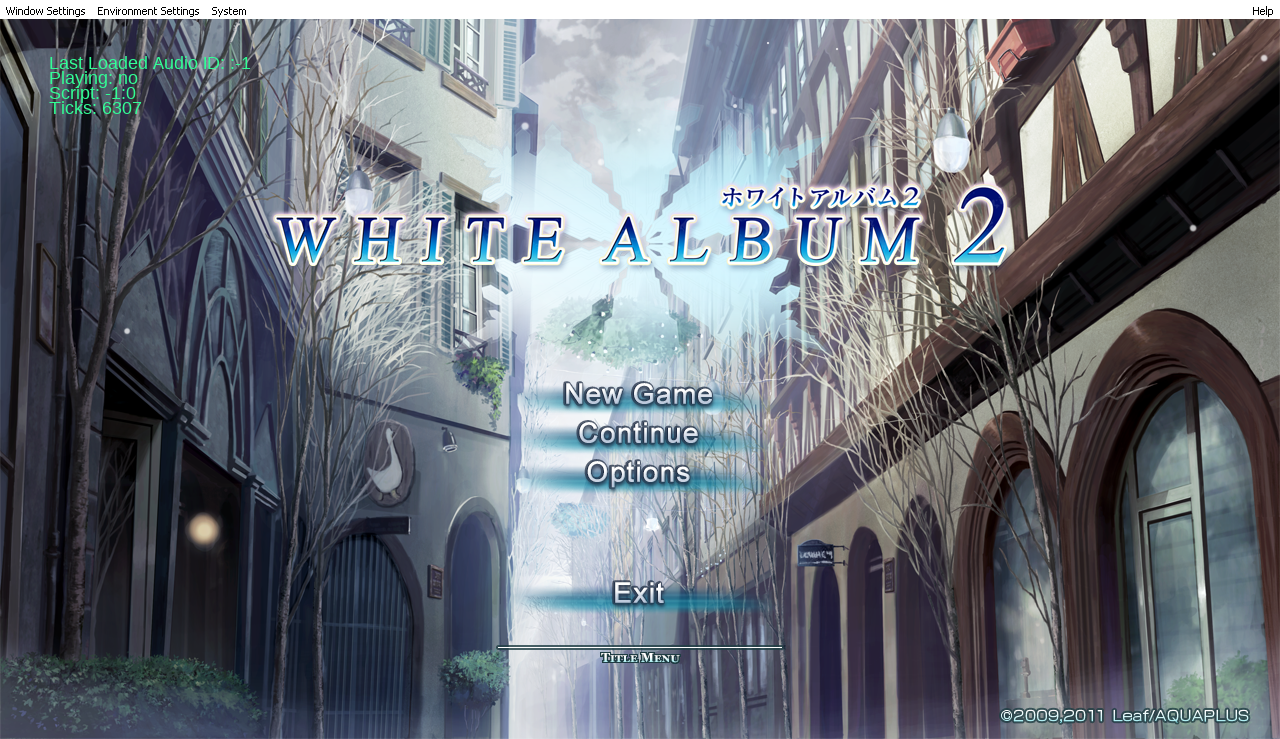

The image above illustrates the DLL working with some debug output being rendered on the game. wa2-proton-dxvk-patch.sh will not copy over the DLL with the debug output, so the game experience will not be ruined. The DLL with debug output can also be found in the repository for those interested.
